Glomerulus Segmentation

import numpy as np
import pandas as pd
import monai
from fastai.vision.all import *
import segmentation_models_pytorch as smp

ORGAN = "kidney"
TRAIN_BATCH_SIZE = 8 # Reduce this, if you run out of cuda memory
EFFECTIVE_BATCH_SIZE = 8 # This is the batch size that will be used for training
IMAGE_SIZE = 512
LR = 3e-4
EPOCHS = 60
MODEL_NAME = f"smp_{IMAGE_SIZE}_{ORGAN}_added_data"
DATA_PATH = Path("../data/")

# Reproducibility
TESTSET_SEED = 93
TRAIN_VAL_SEED = 43

df = pd.read_csv(DATA_PATH/"train.csv") # This is the training set from the competition
fns = L([*get_image_files(DATA_PATH/"test_images"), *get_image_files(DATA_PATH/"train_images")]) # List of all competition images
fn_col = [] # This will be a column in the dataframe, containing the filenames
for _, r in df.iterrows(): fn_col.append([fn for fn in fns if str(r["id"]) == fn.stem][0])
df["fnames"] = fn_col
df["is_organ"] = df.organ.apply(lambda o: o==ORGAN)
df = df[df.is_organ] # Only keep images with the organ we are interested in
assert df.organ.unique()[0] == ORGAN
df = df.drop(columns="organ data_source is_organ tissue_thickness pixel_size sex age".split()).copy()

# These are the images I added and that are annotated by me
add_images = get_image_files(DATA_PATH/"add_images/")
add_images_masks = get_image_files(DATA_PATH/"segs/")

# The masks have the same name as the images, but with "_mask" appended
masks = [p.name[:-9]+".png" for p in add_images_masks]

# Delete images without masks
images_to_delete = [p for p in add_images if p.name not in masks]
for p in images_to_delete: p.unlink()

# This will contain the masks in the same order as the images
sorted_masks = []
for i in add_images:
    sorted_masks.append([p for p in add_images_masks if i.stem == p.stem[:-5]][0])

# Combine the competition data with the added data
add_df = pd.DataFrame({
    "fnames": add_images,
    "segmentation": sorted_masks,
    "is_add": [True]*len(add_images)
})
df["is_add"] = df.id.apply(lambda p: False)
combined_df = pd.concat([df, add_df])

# Setting aside a random testset
cut = int(0.1 * len(combined_df))
ind = np.arange(len(combined_df))
np.random.seed(TESTSET_SEED) # Always create the same testset
np.random.shuffle(ind)
test_ind = ind[:cut]
train_valid_ind = ind[cut:]
test_df = combined_df.iloc[test_ind,:].copy()
train_df = combined_df.iloc[train_valid_ind,:].copy()

# From: https://www.kaggle.com/code/paulorzp/run-length-encode-and-decode/script
def rle_decode(mask_rle, shape):
    '''
    mask_rle: run-length as string formated (start length)
    shape: (height,width) of array to return
    Returns numpy array, 1 - mask, 0 - background
    '''
    s = mask_rle.split()
    starts, lengths = [np.asarray(x, dtype=int) for x in (s[0:][::2], s[1:][::2])]
    starts -= 1
    ends = starts + lengths
    img = np.zeros(shape[0]*shape[1], dtype=np.uint8)
    for lo, hi in zip(starts, ends):
        img[lo:hi] = 1
    return np.reshape(img, shape)

CODES = ["Background", "FTU"] # FTU = functional tissue unit

def x_getter(r): return r["fnames"]
def y_getter(r):
    # My additional annotations are saved as pngs, so I need to differ between the two
    if r["is_add"]:
        im = np.array(load_image(r["segmentation"]), dtype=np.uint8)
        im = (im.mean(axis=-1) < 125).astype(np.uint8)
        return im
    rle = r["rle"]
    shape = (int(r["img_height"]), int(r["img_width"]))
    return rle_decode(rle, shape).T

btfms = aug_transforms(
    mult=1.2,
    do_flip=True,
    flip_vert=True,
    max_rotate=45.0,
    min_zoom=1.,
    max_zoom=1.5,
    max_lighting=0.3,
    max_warp=0.3,
    size=(IMAGE_SIZE, IMAGE_SIZE),
    p_affine=0.5
) # Data augmentation
dblock = DataBlock(blocks=(ImageBlock, MaskBlock(CODES)),
                   get_x=x_getter,
                   get_y=y_getter,
                   splitter=RandomSplitter(seed=TRAIN_VAL_SEED),
                   item_tfms=[Resize((IMAGE_SIZE, IMAGE_SIZE))],
                   batch_tfms=btfms)
dls = dblock.dataloaders(train_df, Path(".."), bs=TRAIN_BATCH_SIZE)

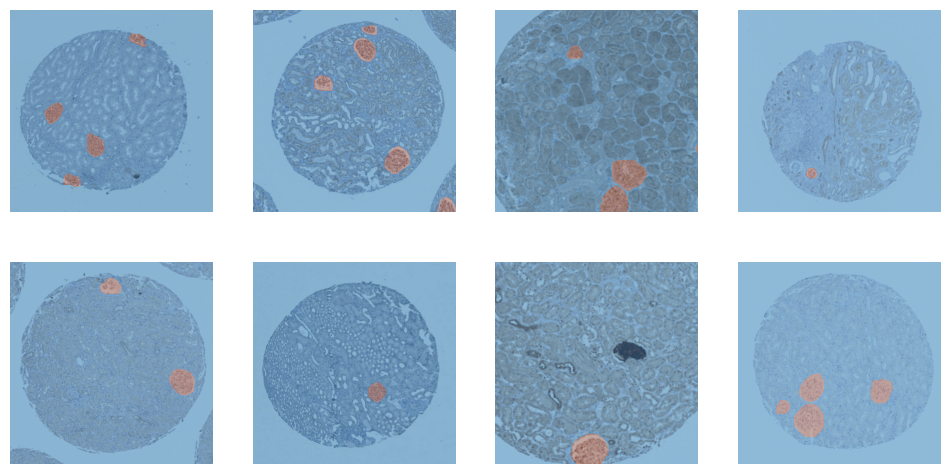

dls.train.show_batch()

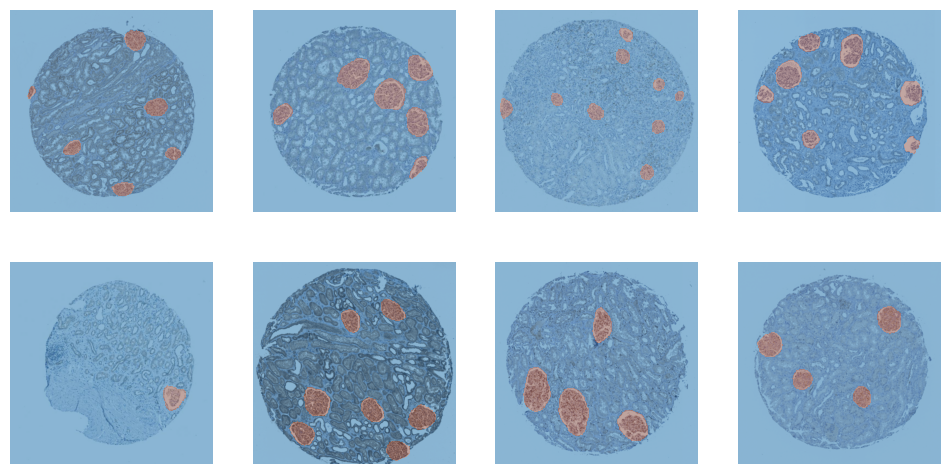

dls.valid.show_batch()

cbs = [
    GradientAccumulation(EFFECTIVE_BATCH_SIZE),
    SaveModelCallback(fname=MODEL_NAME),
]

model = smp.UnetPlusPlus(
    encoder_name="efficientnet-b4",
    encoder_weights="imagenet",
    in_channels=3,
    classes=2,
)

# Splitting model's into 2 groups to use fastai's differential learning rates
def splitter(model):
    enc_params = L(model.encoder.parameters())
    dec_params = L(model.decoder.parameters())
    sg_params = L(model.segmentation_head.parameters())
    untrained_params = L([*dec_params, *sg_params])
    return L([enc_params, untrained_params])

learn = Learner(
    dls,
    model,
    cbs=cbs,
    splitter=splitter,
    metrics=[Dice(), JaccardCoeff(), RocAucBinary()])

learn.fit_flat_cos(EPOCHS, LR)

learn.load(MODEL_NAME)

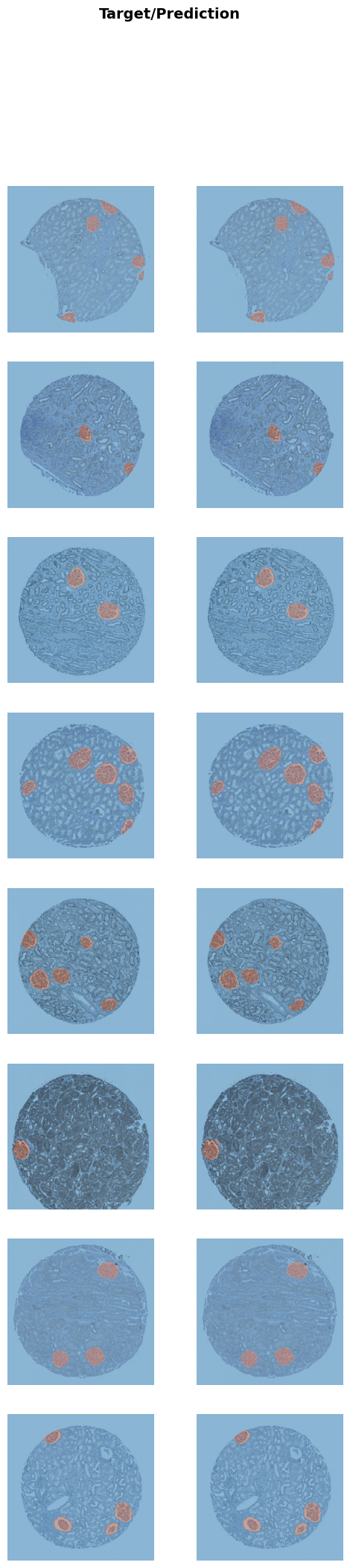

learn.show_results()

# Create a dataloader from the testset
test_dl = dls.test_dl(test_df, with_labels=True)
dice_func = monai.metrics.DiceMetric(include_background=False, reduction="mean")

# This function steps through the different thresholds and returns the best one
def get_best_threshold(learn, dl, metric_func, n_steps=17):
    """
    Tests `n_steps` different thresholds.
    Return the best threshold and the corresonding score.
    """
    thresholds = torch.linspace(0.1, 0.9, n_steps)
    results = []

    res = learn.get_preds(dl=dl, with_input=False, with_targs=True, act=partial(F.softmax, dim=1))

    for t in thresholds:
        metric_func((res[0][:,1]>t).unsqueeze(1), res[-1].unsqueeze(1))
        metric = metric_func.aggregate().item()
        metric_func.reset()
        results.append((round(t.detach().cpu().item(), ndigits=3), metric))

    return sorted(results, key=lambda tpl: tpl[1], reverse=True)[0]

best_threshold, _ = get_best_threshold(learn, dls.valid, dice_func)
best_threshold

def test_model(learn, dl, metric_func, threshold=0.5):
    res = learn.get_preds(dl=dl, with_input=False, with_targs=True, act=partial(F.softmax, dim=1))
    metric_func((res[0][:,1]>threshold).unsqueeze(1), res[-1].unsqueeze(1))
    metric = metric_func.aggregate().item()
    metric_func.reset()
    return metric

train_dice = test_model(learn, dls.train, dice_func, threshold=best_threshold)
valid_dice = test_model(learn, dls.valid, dice_func, threshold=best_threshold)
test_dice  = test_model(learn, test_dl,   dice_func, threshold=best_threshold)

for s, d in zip(("Training Dice:", "Valid Dice", "Test Dice"), (train_dice, valid_dice, test_dice)):
    print(s, d)

# Save and export the model
BEST_MODEL_NAME = f"unetpp_b4_th{int(best_threshold*100)}_d{str(test_dice)[2:6]}"
learn.save(BEST_MODEL_NAME)
learn.export(BEST_MODEL_NAME+".pkl")
